Cybersecurity Forum - Web Application Project

Student: s336973 MIGNONE RENATO

1. Server-side

API Server

Authentication APIs

• POST /api/sessions - User login. Body: {username, password}. Returns user info with canDoTotp flag.
• POST /api/login-totp - TOTP verification for admin users. Body: {code}. Returns success confirmation.
• DELETE /api/sessions/current - User logout. Returns 204.
• GET /api/sessions/current - Get current user information.

Posts APIs

• GET /api/posts - Retrieve all posts with author and comment count.
• GET /api/posts/:id - Get specific post by ID.
• POST /api/posts - Create new post (auth required). Body: {title, text, max_comments?}.
• DELETE /api/posts/:id - Delete post (author or admin with 2FA).

Comments APIs

• GET /api/posts/:postId/comments - Get comments for a post (filtered for anonymous users).
• POST /api/posts/:postId/comments - Add comment. Body: {text}. Anonymous or authenticated.
• PUT /api/comments/:id - Edit comment (author or admin with 2FA). Body: {text}.
• DELETE /api/comments/:id - Delete comment (author or admin with 2FA).

Interesting Comments APIs

• POST /api/comments/:id/interesting - Mark comment as interesting (auth required).
• DELETE /api/comments/:id/interesting - Remove interesting mark (auth required).

Database Tables

• users: id (PK), username (unique), name, hash, salt, is_admin, otp_secret
• posts: id (PK), title (unique), text, author_id (FK), timestamp, max_comments
• comments: id (PK), post_id (FK), author_id (FK, nullable), text, timestamp
• comment_interesting_flags: user_id (FK), comment_id (FK) [composite PK]

2. Client-side

Application Routes

• / - Main forum view with post list sidebar and selected post details.
• /login - Authentication page with username/password and optional TOTP.
• * - 404 Not Found page for invalid routes.

Main React Components

• App - Root component managing authentication and routing.
• ForumLayout - Main layout with navigation, sidebar, and content area.
• LoginLayout - Authentication page with conditional TOTP verification.
• NavigationBar - Fixed navigation with user info and login/logout.
• PostList - Sidebar displaying all posts with selection and counts.
• PostDetails - Main content showing selected post with delete option.
• CommentList - Comments display with edit/delete/interesting features.
• AddPostForm - Post creation form (authenticated users only).
• AddCommentForm - Comment form supporting anonymous and authenticated users.
• LoginForm - Authentication form with regular login and TOTP support.

3. Overall

Screenshots

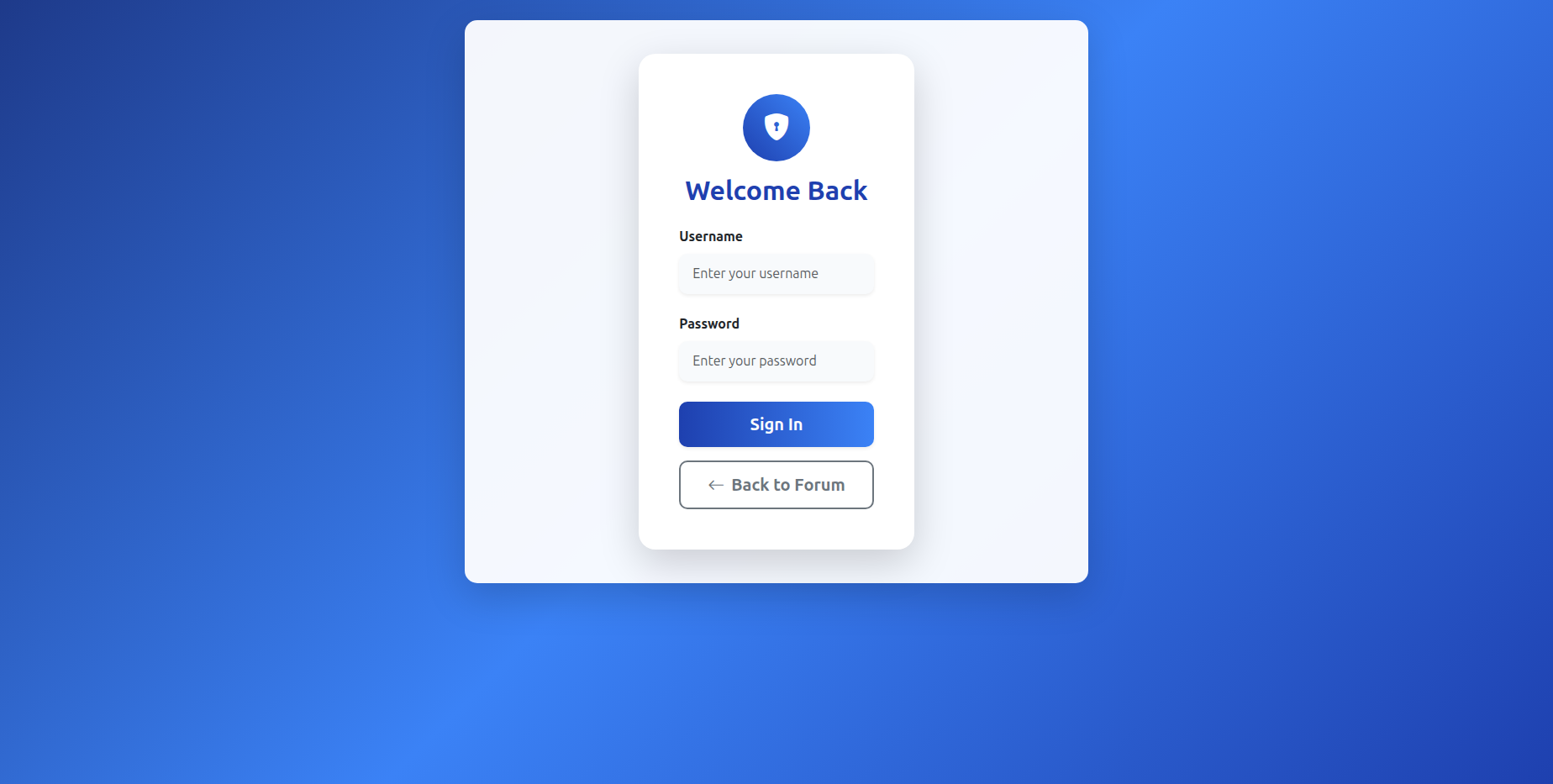

Login Page

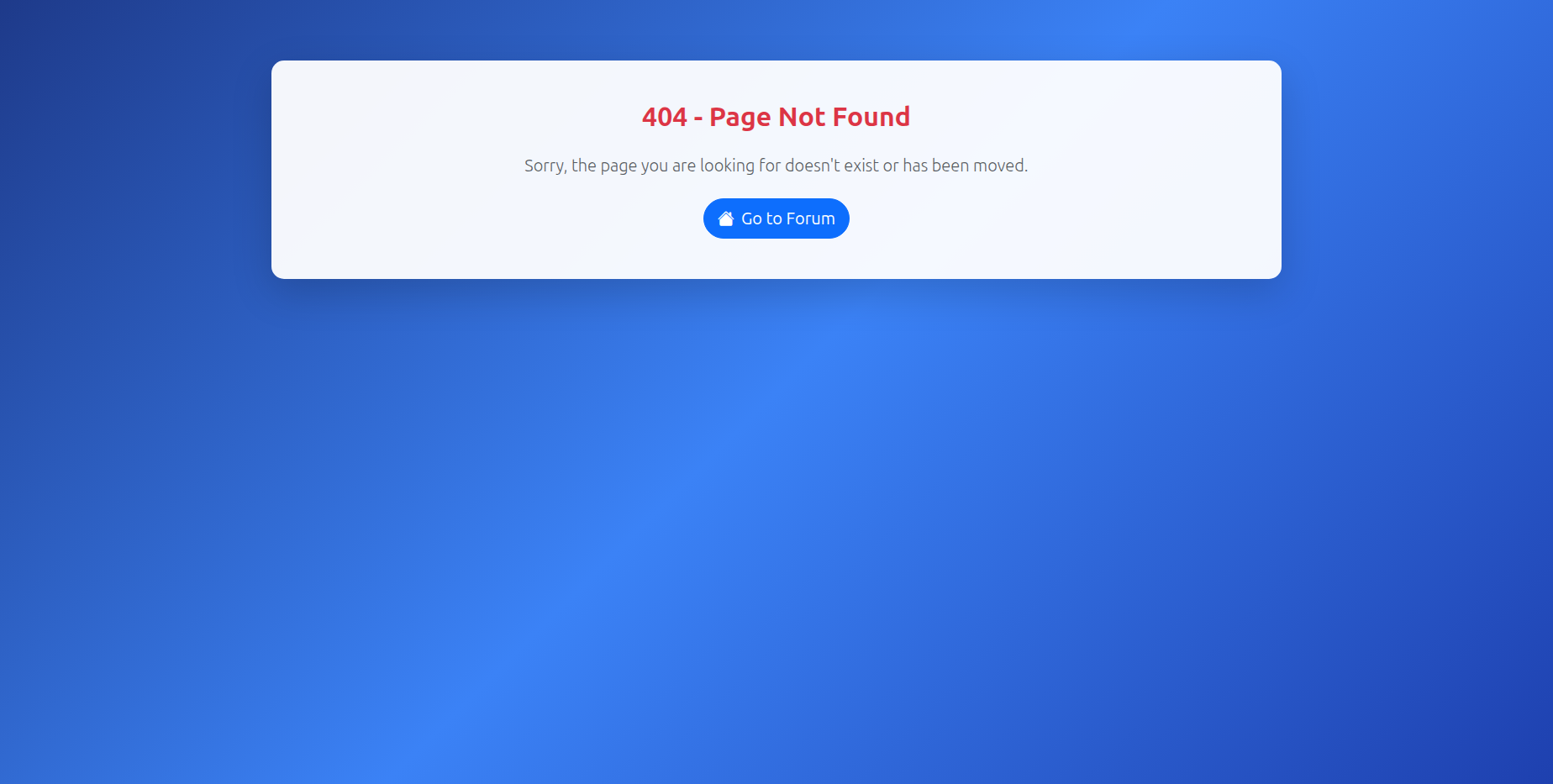

Page Not Found

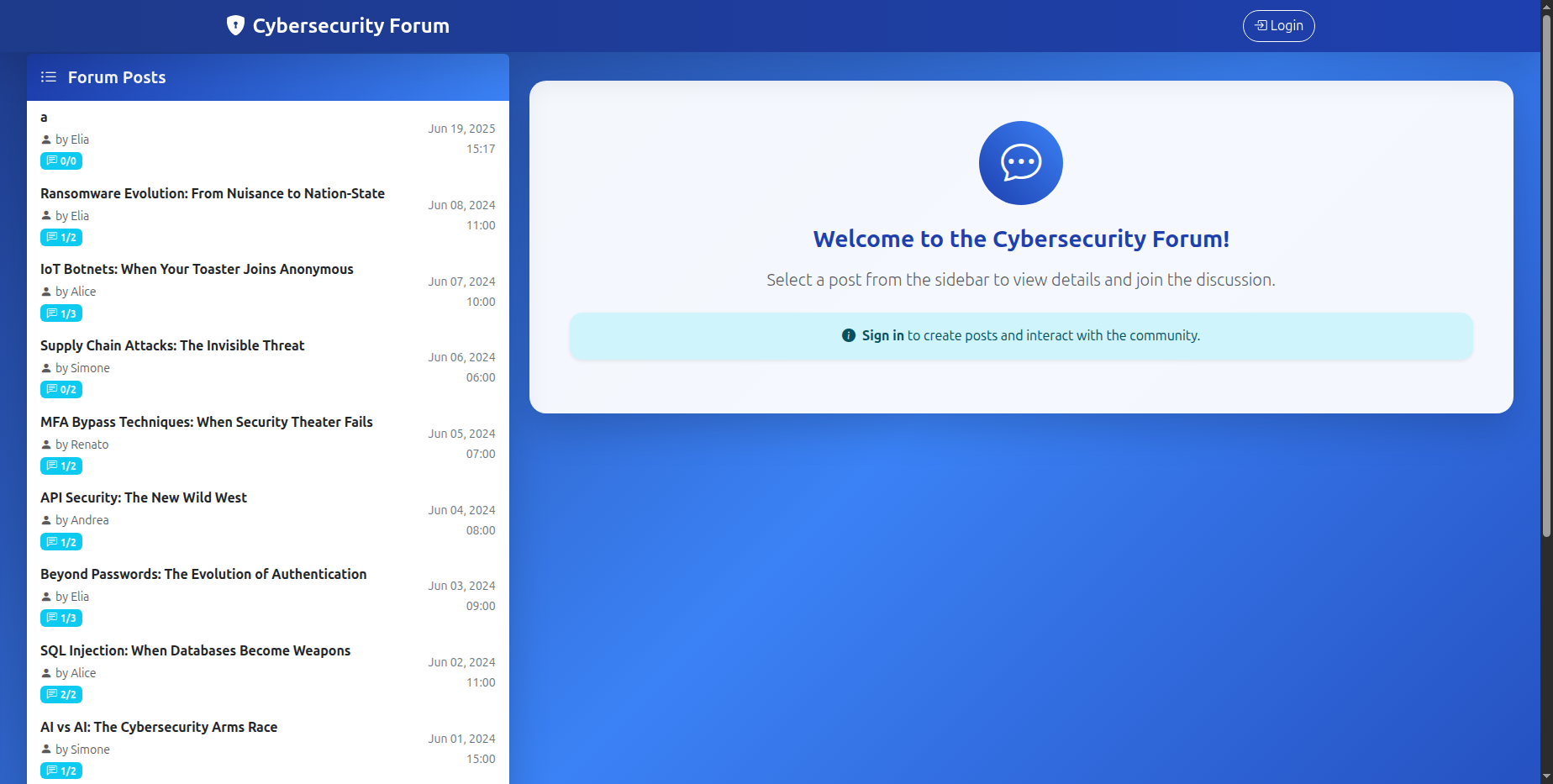

Main Page (Unauthenticated User)

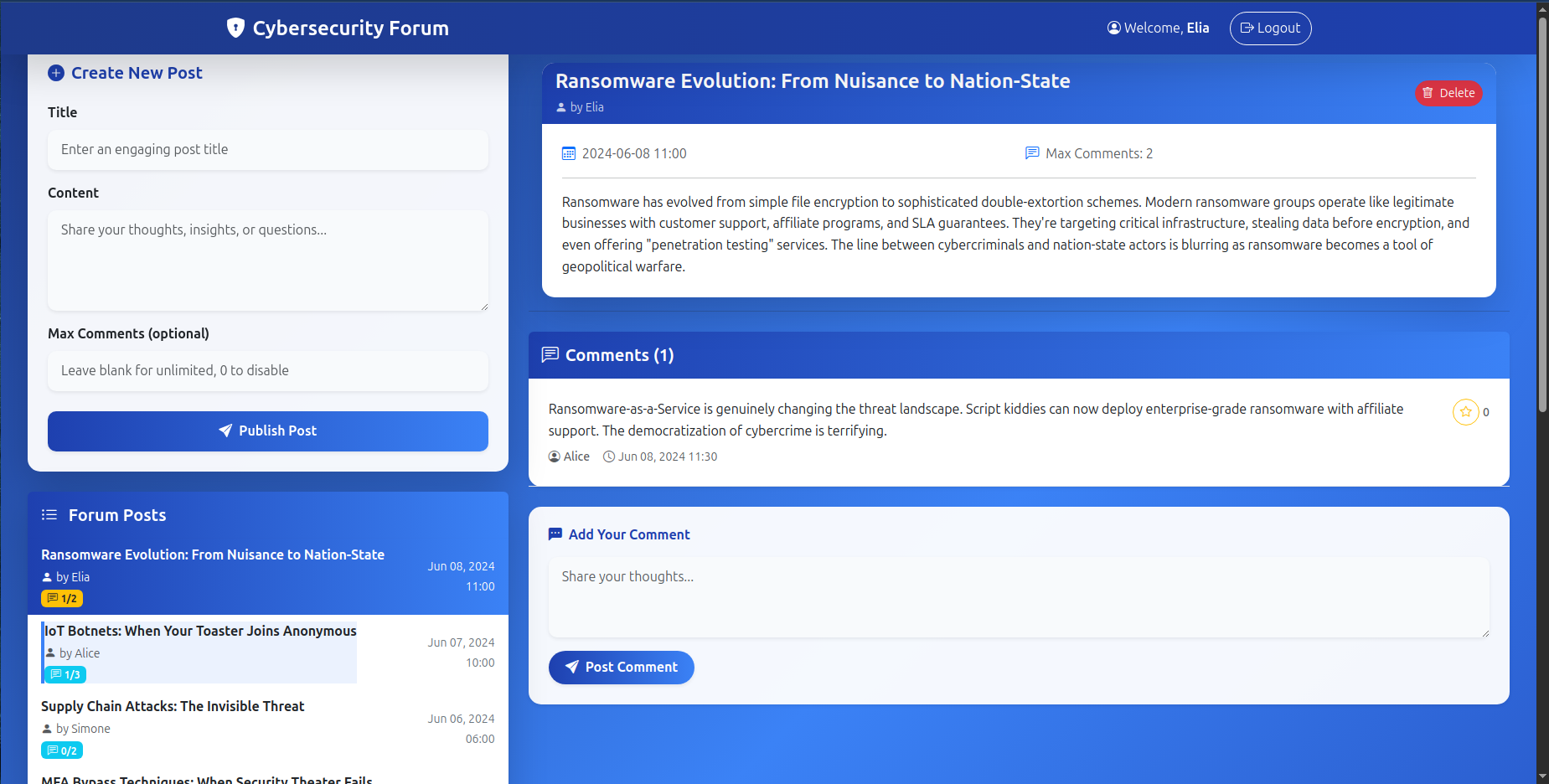

Main Page (Authenticated User)

Main Page (Admin User)

User Credentials

Regular Users

• Username: Alice | Password: pwd | Role: User
• Username: Elia | Password: pwd | Role: User
• Username: Andrea | Password: pwd | Role: User

Administrator Users

• Username: Ren | Password: pwd | Role: Admin | 2FA: Required for full privileges
• Username: Simone | Password: pwd | Role: Admin | 2FA: Required for full privileges

Note: Admin users can login without 2FA but will have limited access. Full admin privileges (post/comment deletion) require TOTP verification.
