Data, control, and trust boundaries
Separates information from instructions and shows where a system must reconsider its assumptions.
- Distinguish data from control in one structured message.
- Trace data flow and control flow through a simple application.
- Mark a trust boundary and name the assumption that changes there.
Why this matters
Imagine you ask a travel assistant to draft a day trip, then press Save itinerary. The same message can contain the place you chose, the date, and the request to save it. Those are not the same kind of thing. The place and date describe the trip. The request tells the software what to try next.
Making that distinction is a practical way to read an agent system. It stops a sentence such as “the agent sent the itinerary” from hiding three different questions: what information was moved, which part decided to act, and which other system received the request. This chapter gives names to those questions before agent foundations adds an agent to the story. The project guide shows how this prerequisite chapter fits into the whole guide.
Simple mental model
Think of a restaurant order slip. Vegetable pizza is data: it is the thing being discussed. Place order is control: it tells the kitchen workflow what should happen. The slip may also name a table, a payment method, and a person allowed to approve a refund. A single slip can therefore carry data, a request for action, and information used to decide whether the action is allowed.
Software messages work the same way. Data flow is the movement of values between components. Control flow is the movement of a decision, trigger, or command that changes what a component does next. The two often travel together, but separating them lets you trace a system without guessing.
| Part of a travel request | Role | Question to ask |
|---|---|---|
destination: "Florence" | Data | What value is being discussed? |
date: "2026-09-12" | Data | What value will be remembered or sent on? |
action: "save_itinerary" | Control | What action is requested? |
actor_id: "maya" | Context for a decision | Who is asking? |
permission: "itineraries:write" | Context for a decision | Is this actor allowed to cause that action? |
The last two fields are neither proof nor permission by themselves. They are inputs that the receiving application must evaluate. The next prerequisite chapter explains how requests change remembered state and create observable events.
Position in the agent workflow
Use this diagram to trace how software systems separate data payloads from control commands during request processing.

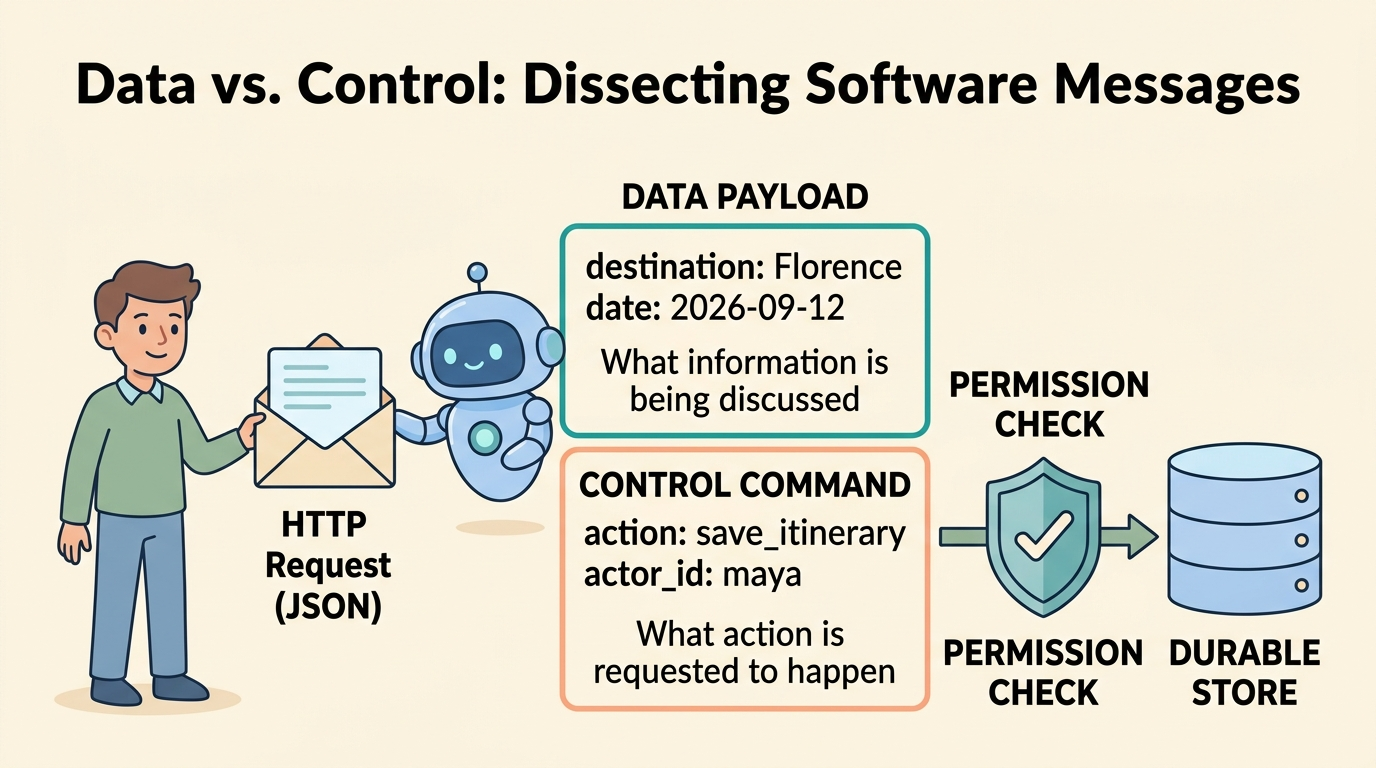

Figure 1. Separating data from control. Data describes information to be stored or transformed; control requests an explicit action. A system evaluates permissions before allowing control instructions to update durable state.
For the itinerary story, a browser sends the application the chosen destination and a request to save it. The application writes the itinerary to its store. It might later ask a map service to calculate travel times. The write moves data into durable state. The map request also directs another system to perform work. The same arrow can carry both a destination and an instruction such as “calculate route.”
How it works
A structured message is a container, not a decision
An application often receives a web request through the Hypertext Transfer Protocol, or HTTP. HTTP gives shared meanings to requests and responses; it does not decide what an application’s fields mean. RFC 9110 defines HTTP as a stateless application-level protocol.
The contents are often written in JavaScript Object Notation, or JSON. JSON is a text format for structured data. It can group named values into an object, which makes a message easier for a person and a program to inspect. RFC 8259 defines JSON’s structure, but not the meaning or authority of its fields.
{ "actor_id": "maya", "action": "save_itinerary", "itinerary": { "destination": "Florence", "date": "2026-09-12" }}Read the message in two passes. In the data pass, destination and date describe an itinerary. In the control pass, action asks the application to save it. actor_id says who claims to be asking. It does not turn the request into an allowed action. The application needs its own rules and records to decide that.
A boundary marks a changed assumption
A trust boundary is a line in a diagram where an assumption must be checked again. It is a teaching and design term, not a claim that one side is safe and the other is unsafe. The useful question is: what no longer follows automatically after this line?

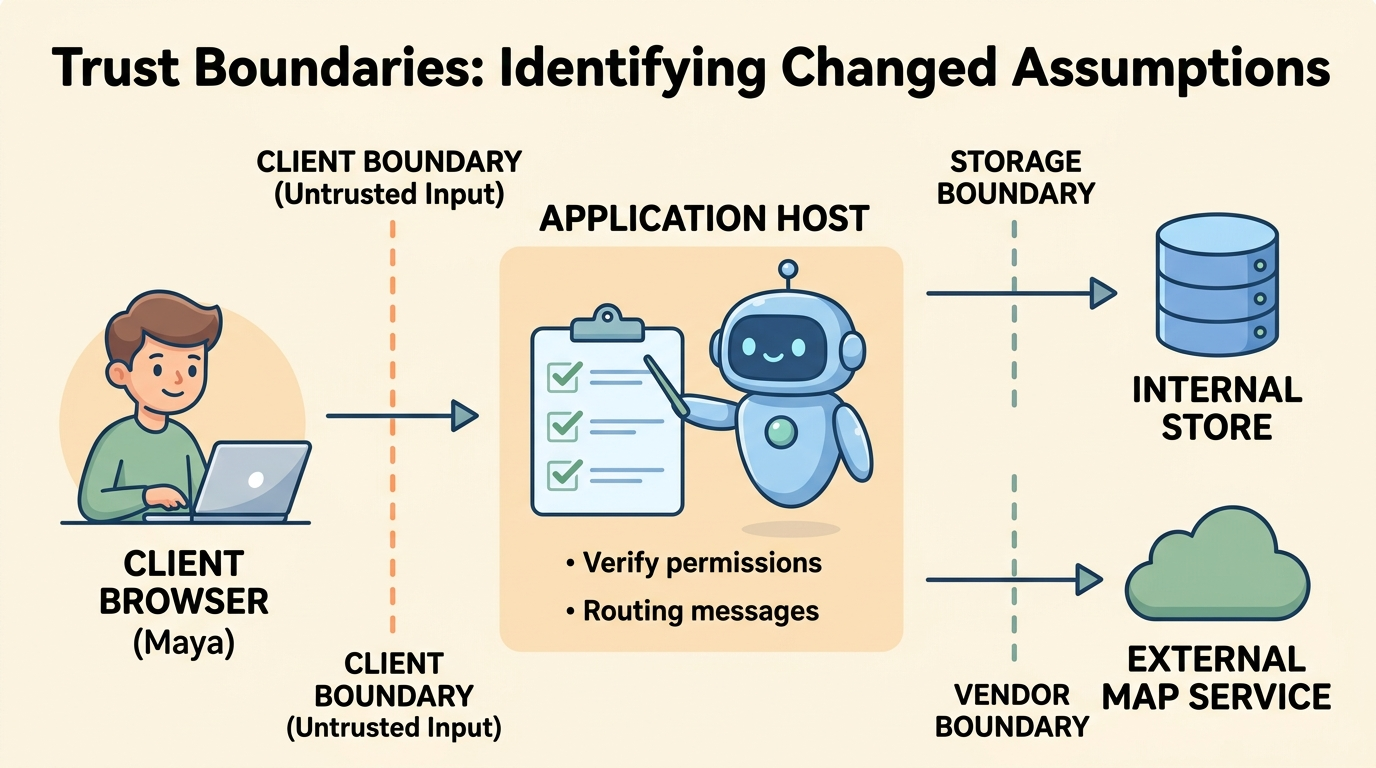

Figure 2. Identifying changed assumptions across trust boundaries. A dashed boundary marks where caller identity, data validity, or execution authority must be re-evaluated rather than assumed.
For example, the application may regard a value in its own store as having passed its normal checks. When it receives the same-looking value from a browser, it cannot make that assumption. When it sends a request to a map service, the map service has its own account, rules, availability, and records. Each crossing changes which component is responsible for interpreting the message and deciding whether to act.
| Crossing | Assumption to reconsider | Ordinary consequence |
|---|---|---|
| Browser to application | The message was supplied by the application’s user interface. | Interpret its fields and decide whether the requested action is allowed. |
| Application to its store | The running process still has the current version of the itinerary. | Decide what should be read or written. |
| Application to map service | The other service shares the application’s rules and account. | Send only the request that service needs and interpret its response separately. |
This is why a boundary belongs on the diagram, not only in a security document. It makes the system’s assumptions visible while its ordinary workflow is still simple.
Main variants
The same reading method works even when the connection changes.
| Connection shape | Data flow | Control flow |
|---|---|---|
| One local component calls another | Values passed in memory | A function call asks the receiving component to run now. |
| Browser calls a web application | An HTTP request carries values | The request method and application fields express the requested work. |
| Application publishes to a queue | A message waits for another process | The published event triggers work later. |
| Application calls a vendor service | Request values cross organisations or accounts | The call asks the service to perform its own operation. |
These are descriptions, not a ranking of safety. A local call can still be important, and a vendor call can still be tightly limited. The boundary tells readers where to ask again about identity, meaning, and responsibility.
Minimal implementation
Before writing code, state the small decision in plain language:
receive requestseparate requested action from itinerary datalook up whether the actor may save an itineraryif allowed, write the itinerary and return a responseotherwise, return a refusal without writing itThis is pseudocode, not a complete program. Its important feature is order: the application identifies the requested control action before it changes its remembered data. It also makes one limit clear. A field named permission in an incoming message is only data until the application checks it against a source it trusts for that decision.
Framework implementations
No framework is required here. Frameworks use labels such as route, handler, webhook, or tool call. Translate each label into the same questions: which component received what data, what control request arrived with it, and where does a trust assumption change? This keeps framework vocabulary from obscuring the workflow.
Data flow and state changes
Data flow alone does not say that anything changed. The application can receive Florence, look up information, and reply without saving anything. A state change happens only when the application updates what it remembers, such as writing the itinerary to its store.
Control flow alone does not promise that an action completed. An application can request a route calculation from a map service and receive a timeout. In later diagrams, keep the two questions separate: “what values moved?” and “what action was requested or triggered?” The next chapter adds the third question: “what state changed, and what event records that change?”
Trust boundaries
Draw a trust boundary around the part whose rules you are currently discussing. Then label every connection that crosses it with the smallest useful set of facts: the sender, the receiver, the data, and the requested action. If the connection can cause an effect outside the boundary, name that effect too.

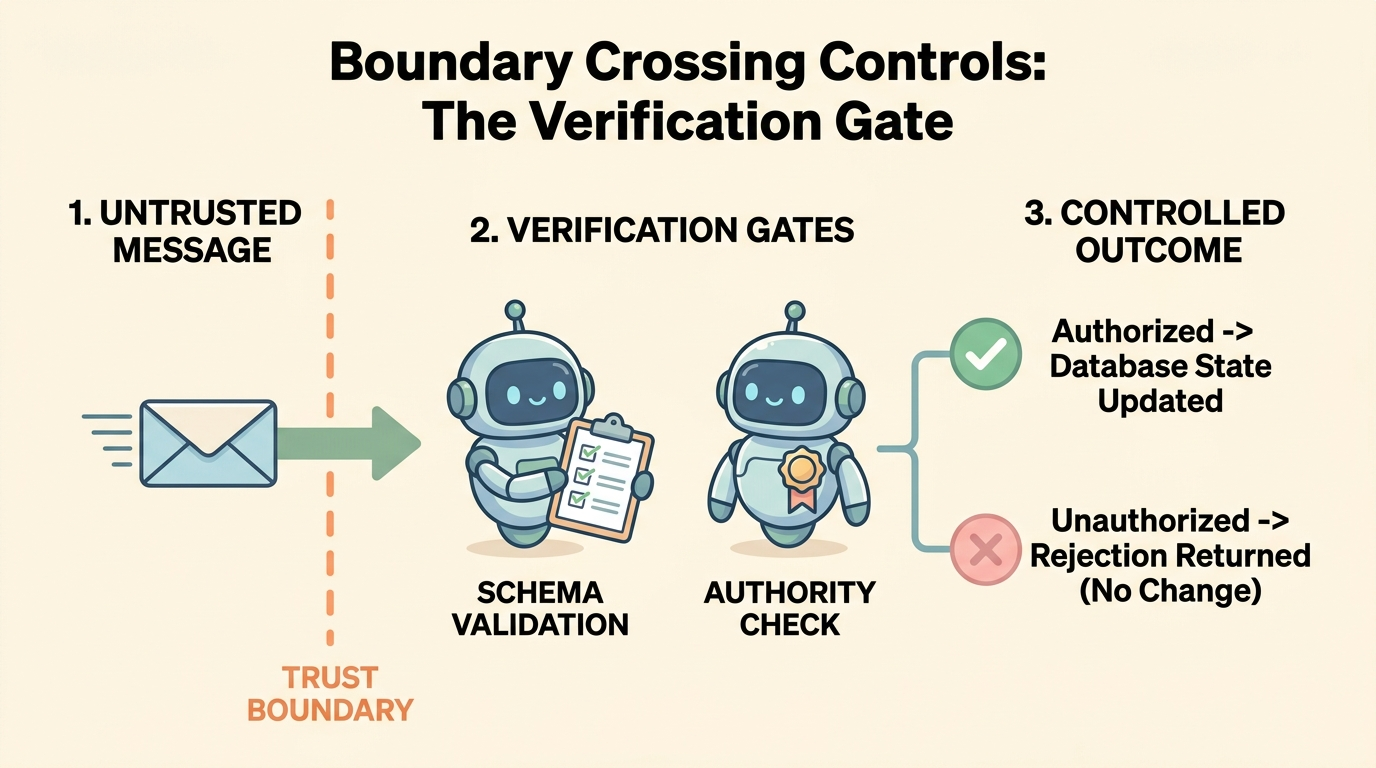

Figure 3. Verification gates at trust boundaries. Before an incoming request can trigger state transitions or invoke downstream components, the host runtime evaluates schema structure and caller authorization.
This is not detailed security analysis. It is inventory. Later, the threat model will use the inventory to discuss assets, actors, authority, boundaries, and side effects. For now, a well-labelled boundary prevents us from assigning every decision to the vague phrase “the system.”
Reliability failures
An ordinary failure can blur data and control if the diagram does not separate them. The application may send a route request, lose the response, and be unable to tell the user whether the map service completed it. The request was sent; that does not prove the route was calculated. Likewise, a response that says “saved” is only useful if the application’s state really contains the itinerary.
This chapter does not prescribe retries, queues, or recovery. It supplies a reading habit for the reliability material: record what was requested, what was observed, and what state changed as different facts.
Worked example
Return to the JSON request above. Suppose Maya is permitted to save itineraries. The application can write the destination and date to its store, then reply that the itinerary was saved. The data change is the new stored itinerary. The control decision is that save_itinerary was allowed and carried out.
Now change only actor_id to an identity that lacks permission. The destination is still ordinary data and the action is still a request. What changes is the application’s decision: it returns a refusal and leaves the stored itinerary unchanged. This tiny comparison is the core distinction: receiving an instruction is not the same as accepting it.
Limitations and trade-offs
Data and control are an explanatory separation, not a property that every protocol labels perfectly. A field can serve both roles. For example, a destination can be travel data for one component and an address that directs delivery work for another. Explain the component and purpose before deciding which role matters in a diagram.
Trust boundaries are also relative to the question being asked. A team may draw one boundary around a whole application when teaching the user journey, then draw smaller boundaries around its store and vendor integrations when planning a deployment. Neither drawing is the whole truth. Each should state the assumptions it is meant to expose.
Security preview
Security work later will ask whether data crossing a boundary is handled as expected and whether a control request has the authority to cause its intended side effect. This chapter does not assess attacks or prescribe controls. It only makes the components, requests, and changed assumptions visible for the threat model.
Open research questions
Where should a later reliability chapter introduce retries: immediately after the first delayed workflow, or in a short optional branch? The answer depends on whether readers need delivery guarantees before they can trace the next main-path workflow.
Key takeaways
- Data describes the thing a system is discussing. Control asks the system to take its next action.
- One message can carry both, plus facts used to decide whether the request is allowed.
- A message format such as JSON gives structure, not meaning, truth, or authority.
- A trust boundary marks where an assumption must be reconsidered. Label what crosses it and who decides what happens next.
